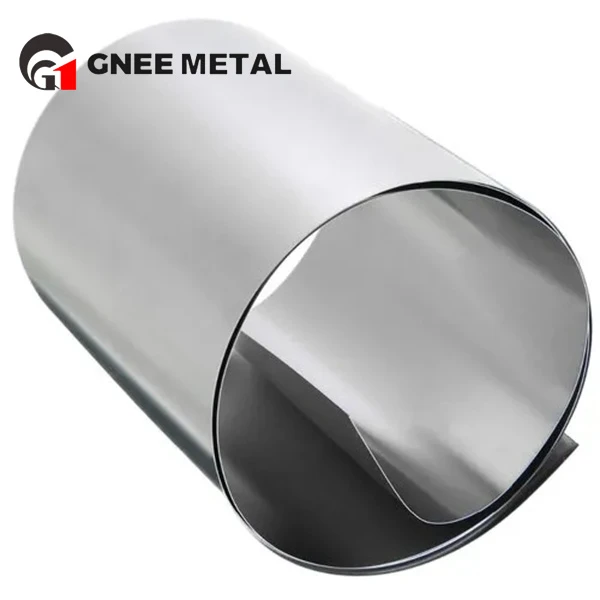

Ti-6Al-4V-Eli Titanium Foil
Ib qho ntawm feem ntau siv titanium alloys yog alpha-beta alloy uas muaj 6% Al thiab 4% V. Cov hlau no feem ntau hu ua Ti 6Al-4V, nthuav tawm kev sib xyaw ua ke zoo heev ntawm kev tiv thaiv corrosion, lub zog thiab toughness. Kev siv ib txwm muaj xws li cov cuab yeej kho mob lossis kev cog qoob loo, kev siv aerospace thiab cov hlab ntsha siab. Nyob rau hauv cov ntaub ntawv ntawm daim ntawv thov kev kho mob, nruj neeg siv specifications yuav tsum tau tswj microstructures thiab kev ywj pheej los ntawm melt imperfections. Cov ntsiab lus interstitial ntawm hlau thiab oxygen yog ua tib zoo tswj los txhim kho ductility thiab tawg toughness. Kev tswj cov theem ntawm cov khoom nruab nrab yog xaiv ELI (ntxiv qis interstitials). Li no lub npe Ti 6Al-4V ELI.
Cov thev naus laus zis tshiab los tsim Ti-6Al-4V-Eli Titanium Foil
Chemistry
|
|
ASTM F136 |
|
Nitrogen, max. |
0.05 |
|
Carbon, max. |
0.08 |
|
Hydrogen, max. |
0.012 (a) |
|
Hlau, max. |
0.25 |
|
Oxygen, max. |
0.13 |
|
Aluminium |
5.5-6.50 |
|
Vandium |
3.5-4.50 |
|
Titanium |
Tshuav |
Lub cev tsis tu ncua thiab thermal zog
| Qhov ntom | 4,47 g / cm³ |
| Melting point | 1649 degree |
| Beta transus kub | 977 ± 4 degree |
| Thermal conductivity ntawm 20 degree | 6,6 W / m degree |
Mechanical Properties (chaw kub)
| Yield zog | min . 828 MPa |
| Tensile zog | min . 895 MPa |
| Elongation | min . 10 % |
Cov xwm txheej saum npoo
Ti 6Al-4V ELI muaj lub siab nyiam lo, fret lossis txias weld nrog kos duab tuag thaum ua. Feem ntau kev lag luam xyaum ua kom tsis txhob muaj tus mob no feem ntau siv hnyav etching lossis pickling ntawm qhov loj me uas ua rau muaj qhov ntxhib los yog textured heev. Fort Wayne Metals tau tsim cov txheej txheem ua haujlwm nrog kev kho kom zoo dua qub uas yuav tsum tau etching tsawg kawg nkaus ntawm qhov loj me kom tshem tawm cov oxide seem, ua kom lub ntsej muag huv thiab du dua.
Loj -scale Hoobkas ntau lawm ntawm ntshiab titanium ntawv ci
Peb lub chaw yog lub chaw tsim khoom niaj hnub titanium alloy nrog cov kab ntau lawm, npog tag nrho cov txheej txheem tsim khoom los ntawm cov khoom siv raw mus rau cov khoom tiav. Peb siv lub tshuab nqus tsev arc remelting (VAR) rauv thiab plasma arc melting systems los tsim cov qib siab - zoo titanium ingots nrog kev tswj cov tshuaj muaj pes tsawg leeg. Cov ingots no ces dov siv hydraulic forging presses, dov mills, thiab 20 Sendzimir txias dov mills, ua rau lub machining ntawm titanium alloys thicknesses tsawg li 0.012 hli nrog tsis tshua muaj siab precision. Peb lub peev xwm kho cua sov muaj xws li lub tshuab nqus tsev vacuum annealing furnaces, uas zoo tiv thaiv oxidation thiab tsim cov theem alpha- tseem ceeb heev rau kev tswj cov khoom siv hauv kev kho mob thiab aerospace.
Tuam txhab Profile
Pab pawg muaj 5 lub koom haum ua lag luam, nyob hauv Anyang, Tianjin, Hongkong thiab Singapore lub teb chaws thiab cov cheeb tsam. Lub tsev hauv paus yog nyob rau hauv hometown ntawm oracle nyob rau hauv Henan xeev, qhov chaw ntawm lub ntiaj teb no kab lis kev cai cuab yeej cuab tam "Yin Ruin", Anyang nroog, ib tug ntawm yim ancient capitals ntawm Tuam Tshoj. Lub tuam txhab, nruj me ntsis siv 6S kev tswj hwm qhov system, hauv 2016 dhau ISO9001 thoob ntiaj teb kev ua haujlwm zoo ntawv pov thawj, GJB9001B-2009 National tub rog tus qauv kev tswj hwm kev lees paub.
Pab pawg ntseeg
Cov neeg tuaj xyuas
GNEE koom nrog hauv Exhibitions
Cim npe nrov: ti-6al-4v-eli titanium ntawv ci, Tuam Tshoj ti-6al-4v-eli titanium ntawv ci manufacturers, lwm tus neeg, Hoobkas
