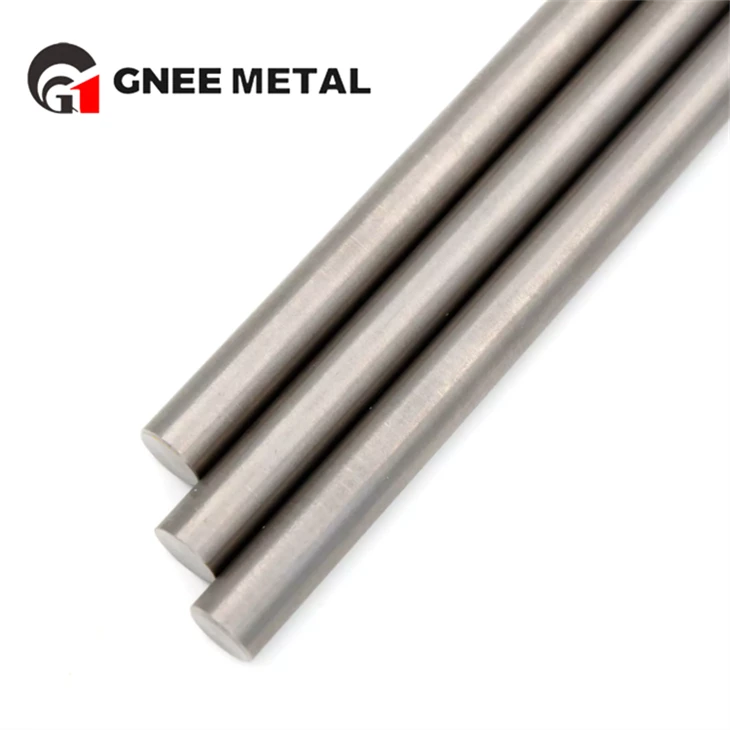

Ti-6A1-4V Kev Kho Mob Titanium Alloy Qws
Khoom Description
Muaj ob hom kev kho mob qib titanium alloy rods: Ti-6AL4V thiab Ti-6AL4VELI yog cov alloys uas muaj 6% txhuas thiab 4% vanadium thiab yog cov feem ntau siv titanium alloys hauv tshuaj. Vim lawv txoj kev sib haum xeeb nrog tib neeg lub cev, cov titanium alloys tau dav siv rau cov txheej txheem kho mob thiab tho lub cev. Cov titanium alloys tseem hu ua Gr.5 thiab Gr.23.
Ti-6AL4V thiab Ti-6AL4VELI tiv taus ntau dua rau kev puas tsuaj thaum siv rau kev cog hniav. Cov txheej txheem implant pib nrog qhov chaw ntawm titanium ntsia hlau rau hauv lub puab tsaig. Cov ntsia hlau zoo ib yam li cov hauv paus hniav thiab ua zoo ib yam. Tom qab cov pob txha loj hlob mus rau hauv kev kho mob-qib titanium ntsia hlau nyob rau hauv ib lub sij hawm teev, ib tug hniav yog txuas mus rau lub cog.
Ti-6A1-4V Medical Qws Titanium Supplier
Lub cev muaj zog
|
Lub cev muaj zog |
Tensile zog |
tawm dag zog |
Elongation |
Tshooj Shrinkage |
|
Chav tsev |
Mpa |
Mpa |
% |
% |
|
Ti-6AL4V |
>930 |
>860 |
>10 |
>25 |
|
Ti-6AL4VELI |
>860 |
>795 |
>10 |
>25 |
Tshuaj muaj pes tsawg leeg
|
Hom |
Chemical Composition (wt%) |
||||||
|
Al |
V |
Fe |
C |
N |
H |
O |
|
|
Ti-6AL4V |
5.5-6.75 |
3.5-4.5 |
0.3 |
0.08 |
0.05 |
0.008 |
0.2 |
|
Ti-6AL4VELI |
5.5-6.5 |
3.5-4.5 |
0.25 |
0.08 |
0.03 |
0.012 |
0.13 |
Kev kho mob-Qib vs. Kev lag luam-Qib: Qhov txawv yog dab tsi?
| Parameter | Qib Kho Mob (ASTM F136) | Kev Lag Luam Qib (ASTM B348) |
|---|---|---|
| Purity | Siab purity, nruj dua tswj | Standard industrial purity |
| Microstructure | Uniform, zoo -grained | Tej zaum yuav muaj ntau variation |
| suav nrog | Cov ntsiab lus suav nrog tsawg heev | Standard inclusion txwv |
| Kev sim | 100% ultrasonic kuaj | Standard sampling soj ntsuam |
| Cov ntaub ntawv | Tag nrho traceability (MTR) | Txwv tsis pub traceability |
Loj -scale Hoobkas ntau lawm
Muaj Specifications rau Ti-6Al-4V Medical Rods
Peb muab Ti-6Al-4V rods kho mob raws li nram no specifications:
| Parameter | Ntau yam / Options |
|---|---|
| Txoj kab uas hla | 1.0mm-300 hli |
| Ntev | Kev cai txiav (feem ntau 250mm - 6000mm) |
| Qhov xwm txheej | Annealed (feem ntau), Kub Rolled, txias tiav |
| Nto tiav | Tig, Hauv av, Polished (Ra tsawg dua lossis sib npaug rau 0.4μm rau polished) |
| Daim ntawv pov thawj | EN 10204 3.1 / 3.2, MTR nrog tag nrho traceability |
| Ntim | Muab qhwv tus kheej, tiv thaiv- zoo li qub, chav huv huv tau sib xws |
Titanium Rod Qws Enterprise
Vim li cas thiaj xaiv Peb Ti-6Al-4V Medical Rods?
Tag nrho Traceability
Txhua tus pas nrig tau muab nrog Daim Ntawv Xeem Xeem Xeem (MTR) uas qhia cov tshuaj muaj pes tsawg leeg, cov khoom siv kho tshuab, thiab cov xov tooj cua sov. Koj tuaj yeem taug qab txhua pawg rov qab mus rau qhov qub yaj.
Kev Tswj Xyuas Zoo
100% qhov ntsuas qhov ntsuas
100% ultrasonic kuaj (rau cov ntawv thov tseem ceeb)
Thib peb-kev tshuaj ntsuam xyuas muaj (SGS, BV, TÜV)
Kev ua raws cai
Peb muab:
Precision txiav mus rau qhov ntev
Centerless sib tsoo
Nto polishing (Ra tsawg li 0.2μm)
Chamfering thiab deburring
Ntim Ntim
Peb cov pas nrig kho mob tau ntim rau hauv qhov chaw huv si nrog:
Anti- npuas npuas qhwv
Cov raj yas kaw
Desiccant pob
Daim ntawv qhia meej meej nrog qib, qhov loj me, tus naj npawb cua sov, thiab qhov ntau
Cim npe nrov: ti-6a1-4v kho mob titanium alloy pas nrig, Tuam Tshoj ti-6a1-4v kho mob titanium alloy pas nrig manufacturers, lwm tus neeg, Hoobkas
