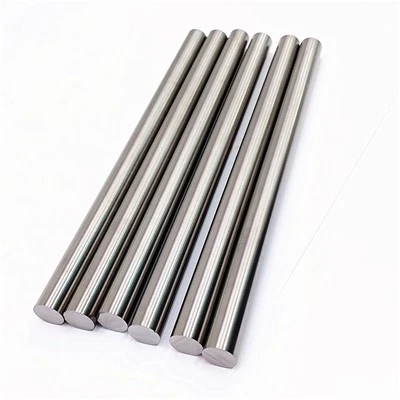

Tom ntej: ASTM B348 GR5 Titanium Round Bars
Loj: Φ{0}}.5mm-30mm
Ntev: 1000-3000mm
Daim ntawv thov: Feem ntau yog siv rau kev lag luam xws li Artificial pob qij txha, rotating ncej, golf taub hau, tes cuab yeej, ntsia hlau thiab txiv ntseej thiab hais txog.
Khoom Description
ASTM B348 / B348M ({2})Titanium thiab Titanium Alloy Barsthiab Billets
ASTM B348 Txuj Specification rauTitanium thiab Titanium Alloy Barsthiab Billets. Vim tias nws lub zog siab thiab lub teeb yuag, lawv tau siv dav hauv cov khoom siv rau qhov chaw kub, nrog rau cov khoom siv dav hlau, petrochemical thiab tshuaj lom neeg kev lag luam thiab lwm yam.
Qauv:
ASTM B348, ASME SB348, ASTM B381, ASME SB381ELI, ASTM F136, ASTM F67, AMS 4928, AMS 4965, ISO 5832-2, ISO 5832-3
Qib:
Tsis siv neeg Titanium:
Qib 1, Qib 2, Qib 3, Qib 7, Qib 11 (CP Ti-0.15Pd), Qib 16, Qib 17, Qib 26, Qib 27
Titanium Alloys:
Qib 5 (Ti-6Al-4V), Qib 9 (Ti 3Al-2.5V), Qib 12 (Ti-0}3-Mo{{ 10}}.8Ni), Qib 19 (Ti Beta C), Qib 23 (Ti 6Al-4}V ELI), Qib 28
Qib ntawm cov khoom: Gr1, Gr2, Gr5, Gr12
Feem ntau siv qib ASTM B348 Chemical Composition:
| Qib |
Ti |
C max |
N max |
H max |
Al |
V |
O max |
Ni |
|
Gr1 |
Nco ntsoov |
0.08 |
0.03 |
0.015 |
/ |
/ |
0.18 |
/ |
|
Gr 2 |
Nco ntsoov |
0.05 |
0.03 |
0.015 |
/ |
/ |
0.25 |
/ |
|
Gr 5 |
Nco ntsoov |
0.10 |
0.05 |
0.015 |
5.5~6.75 |
3.5~4.5 |
0.20 |
/ |
|
Gr 12 |
ceeb toom |
0.08 |
0.03 |
0.015 |
/ |
/ |
0.25 |
0.6-0.9 |
Feem ntau siv qib ASTM B348 Mechanical Properties (%):
| Qib |
Tensile zog min (N / mm2) |
Yield zog mm (N/mm2) |
Elongation 4D min |
Kev txo qis ntawm cheeb tsam min |
|
Gr1 |
240 |
138 |
24 |
30 |
|
Gr 2 |
345 |
275 |
20 |
30 |
|
Gr 5 |
895 |
828 |
10 |
25 |
|
Gr 12 |
483 |
345 |
18 |
25 |
Loj:
Φ5mm -350 hli
Ntev:
300-6000 hli
Titanium pas nrig ntau lawm txheej xwm:
Kub-ua hauj lwm: R, Txias-ua hauj lwm: Y, Annealing: M, Solutioning: ST
Daim ntawv thov:
Feem ntau yog siv rau kev lag luam xws li Artificial pob qij txha, rotating ncej, golf taub hau, tes cuab yeej, screws thiab ceev, thiab lwm yam.
Cim npe nrov: Tuam Tshoj astm b348 gr5 titanium puag ncig bar manufacturers, lwm tus neeg, Hoobkas
