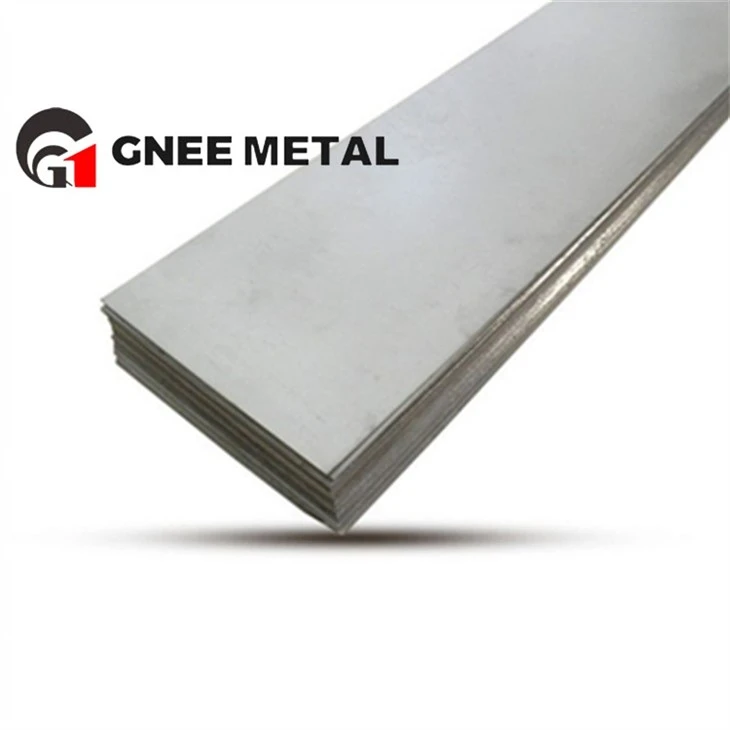

Qib 4 Ntshiab Titanium Phaj
Qib 4 Ntshiab Titanium Phaj yog dab tsi?
Qib 4 titanium (UNS R50700) yog qhov muaj zog tshaj plaws ntawm plaub qib kev lag luam ntshiab titanium (Qib 1-4). Nws ua tiav nws lub zog ntau dua los ntawm kev ua tib zoo tswj cov pa oxygen (txog li 0.40%) thiab hlau (txog 0.50%), uas muab cov kev daws teeb meem ntxiv dag zog thaum tswj xyuas qhov zoo tshaj plaws corrosion kuj yam ntxwv ntawm ntshiab titanium.
Qib 4 ntshiab titanium daim ntawv thov
Qib 4 Titanium Alloy Sheet Hauv kev lag luam chlor-alkali, cov khoom tsim los ntawm titanium alloy cov ntaub ntawv muaj xws li cov chlorine txias txias, anode electrolyzers, cua sov raj rau dechlorination yees, thiab lub tshuab nqus tsev dechlorination twj.
Qib 4 titanium alloy daim ntawv yog siv rau hauv biomedical, tsom iav, hniav nyiaj hniav kub, xov tooj ntawm tes, khoos phis tawj thiab lwm yam kev lag luam pej xeem.
Cov iav tsom iav ua los ntawm Qib 4 titanium alloy yog tawv, hloov tau thiab ergonomic.
Qib 4 titanium alloy daim ntawv Piv nrog kub, platinum thiab lwm yam hlau muaj nuj nqis, titanium, raws li hom tshiab ntawm cov khoom siv hniav nyiaj hniav kub, muaj qhov txiaj ntsig zoo ntawm tus nqi.
Titanium phaj Enterprise
Tshuaj muaj pes tsawg leeg - txwv hauv % (ASTM B348/863 + B265)
| Ti | So |
| Fe | max . 0,50 |
| C | max . 0,08 |
| O | max . 0, 40 |
| N | max . 0,05 |
| H | max . 0,015 |
Lub cev tsis tu ncua thiab thermal zog
| Qhov ntom | 4,51 g/m² |
| Melting point | 1670 degree |
| Beta transus kub | 835 ± 4 degree |
| Thermal conductivity ntawm 20 degree | 17 W / m degree |
Tej yam khoom siv (ntawm chav tsev kub rau ASTM B348/863)
| Yield zog | min . 483 MPa |
| Tensile zog | min . 550 MPa |
| Elongation | min . 15% |
Siv tau Specifications rau daim hlau:
ASTM B265- Txuj Specification rau Titanium thiab Titanium Alloy Sawb, Ntawv, thiab Phaj
ASME SB 265- Ib yam li ASTM B265 rau kev siv lub nkoj siab
TIAB SA 4901- Titanium Sheet thiab Sawb, Annealed
TIAB SA 4902- Titanium Sheet thiab Sawb, Txias Rolled
ISO 5832-2- Kev cog hniav rau kev phais - Cov khoom siv hlau - Ntu 2: Tsis siv neeg titanium
Qib 4 vs Lwm CP Titanium Qib
| Khoom | Qib 1 | Qib 2 | Qib 3 | Qib 4 |
|---|---|---|---|---|
| Tensile zog (min) | 240 MPa | 345 MPa rau | 450 MPa | 550 MPa |
| Yield zog (min) | 170 MPa | 275 MPa rau | 380 MPa rau | 480 MPa rau |
| Elongation (min) | 24% | 20% | 18% | 15% |
| Oxygen (max) | 0.18% | 0.25% | 0.35% | 0.40% |
| Hlau (max) | 0.20% | 0.30% | 0.30% | 0.50% |
| Formability | Zoo heev | Zoo heev | Zoo | Nruab nrab |
| Kwv tij muaj zog | qis tshaj | Tsawg | Nruab nrab | Siab tshaj |
| Cov ntawv thov siv | Tsim, sib sib zog nqus kos duab | Lub hom phiaj dav dav | Kev lag luam | Siab -lub zog CP daim ntawv thov |
Dab tsi yog cov qauv loj rau Qib 4 titanium daim hlau?
Peb khaws cov khoom muag dav dav ntawm ntau qhov ntau thiab tsawg:
Daim ntawv:1.0mm, 1.5mm, 2.0mm, 3.0mm, 4.0mm, 5.0 hli
Lub teeb phaj:6.0mm, 8.0mm, 10.0mm, 12.0mm, 15.0mm, 20.0 hli
Medium Phaj:25mm, 30mm, 35mm, 40mm, 45mm, 50mm
Heavy Phaj:60mm, 70mm, 80mm, 90mm, 100mm
Txheem dav: 1000mm, 1250mm, 1500mm, 2000mm
Standard ntev: 2000mm, 3000mm, 4000mm, 6000mm
Pab neeg txawj ntse
GNEE Hlau, tsim nyob rau hauv 2008, nrog rau npe peev ntawm RMB 5 lab, yog ib tug kev lag luam steel mov saw enterprise. Gurney tau nqis peev ntau dua 35 lab yuan, npog thaj tsam ntawm ntau dua 4,000 square metres ntawm Anyang Hoobkas tau ua tiav thiab muab tso rau hauv ntau lawm, uas tuaj yeem pab txhawb cov txheej txheem ntawm laser txiav, khoov, vuam, pleev xim, thiab lwm yam.
purly titanium GR5 phaj tuam txhab uas muag
FAQ
Peb tau teeb tsa ntau cov lus nug rau peb cov neeg siv khoom, tuaj yeem pab koj ua siab dawb:
Q: Koj cov nqe lus them nqi yog dab tsi?
A: 30% T / T ua ntej, 70% tshuav nyiaj li cas ua ntej ua zaub mov xa tuaj lossis raws li daim qauv ntawm daim nqi thauj khoom lossis L / C thaum pom.
Q: Koj ua li cas rau peb txoj kev lag luam ntev - lub sij hawm thiab kev sib raug zoo?
A: Peb khaws cov khoom zoo thiab cov nqi sib tw kom ntseeg tau tias peb cov neeg siv khoom tau txais txiaj ntsig; Peb hwm txhua tus neeg siv khoom raws li peb tus phooj ywg thiab peb ua siab dawb ua lag luam thiab ua phooj ywg nrog lawv. Txawm lawv tuaj qhov twg los.
Q: Koj puas muab cov qauv? puas yog dawb los yog ntxiv?
A: Yog, peb tuaj yeem muab cov qauv dawb tab sis tsis them tus nqi thauj khoom.
Q: Koj cov nqe lus them nqi yog dab tsi?
A: Them nyiaj<=1000USD, 50% in advance. Payment>=1000USD, 30% T / T ua ntej, tshuav nyiaj li cas ua ntej xa khoom. lossis sib tham
