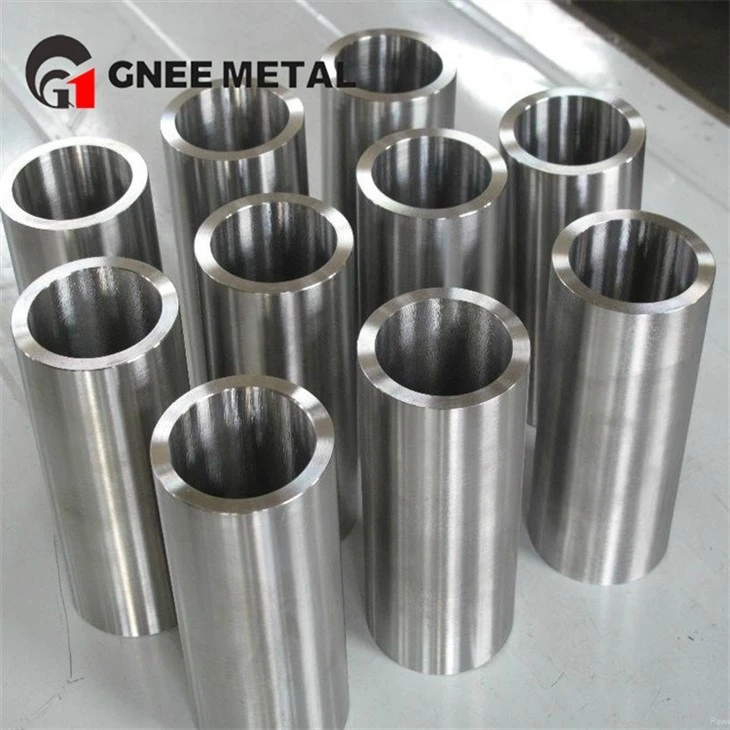

Titanium Qib 5 Tube

Vim lub zog, tshwj xeeb ceev thiab corrosion kuj ntawm Seamless Qib 5 Titanium yeeb nkab, Titanium Ncaj Piping yog siv nyob rau hauv ntau industries rau cov khoom zoo.

Qib 5 Titanium Ncaj Tube feem ntau muaj kev ua tau zoo dua li cov khoom sib tw xws li stainless hlau lossis super alloys vim tias nws yog lub teeb yuag thiab corrosion resistant.

Qhov ceev ntawm titanium tso pa yeeb nkab yog kwv yees li 60% ntawm cov hlau -raws li los yog npib tsib xee-raws li alloys. Qhov no txo ​​qhov hnyav ntawm cov qauv aerospace. Lub zog tensile yog siab dua austenitic lossis ferritic stainless hlau.

nyias phab ntsa titanium tubing kuj excels nyob rau hauv corrosion kuj, outperforming stainless hlau nyob rau hauv feem ntau ib puag ncig. Qib 5 titanium round tube yog nonmagnetic, muaj cov khoom siv hluav taws xob zoo, thiab muaj cov ntsiab lus melting ntau dua li cov hlau alloys.



Sab saum toj titanium khoom zoo

Element	Qhov sib txawv (%)	Lub luag haujlwm hauv Alloy
Aluminium	5.50 – 6.75%	Alpha stabilizer, kev daws teeb meem ntxiv dag zog
Vanadium	3.50 – 4.50%	Beta stabilizer, txhim kho kev ua haujlwm
Hlau (max)	0.40%	Tswj impurity
Oxygen (max)	0.20%	Muaj feem xyuam rau lub zog thiab ductility
Cov pa roj carbon (max)	0.08%	Khaws purity
Nitrogen (max)	0.05%	Tswj rau cov khoom
Hydrogen (max)	0.015%	Tiv thaiv hydride embrittlement
Titanium	Tshuav	Cov khoom siv hauv paus



Kub	Annealed		Txias- ua haujlwm
Tensile Rm	116	qis (min)	150	qis (min)
Tensile Rm	800	MPa (min)	1034	MPa (min)
Rp. 0.2% Tawm	102	qis (min)	135	qis (min)
Rp. 0.2% Tawm	700	MPa (min)	930	MPa (min)
Elongation (2 "los yog 4D gl)	10	% (min)	8	% (min)



Kub kub (0-100 degree)	565	J.kg-1.℃K-1
Thermal conductivity	6.7	Wm - 1.℃K-1
Thermal Expansion	8.6	μm / μm / degree
Modulus Elasticity	120	GPa
Hluav taws xob Resistivity	17.1	Ohm -cm
Qhov ntom	4.43	g/cm3



Qib 5 titanium raj muaj kev tiv thaiv zoo rau:

Dej hiav txwv- Zoo tiv thaiv rau pitting, crevice corrosion, thiab kev nyuaj siab corrosion cracking

Chlorides- Kev ua tau zoo tshaj plaws nyob rau hauv ib puag ncig chloride

Oxidizing Acids- Nitric acid, chromic acid

Organic Acids- acetic acid, citric acid, formic acid

Alkaline Solutions- Kev tiv thaiv zoo rau feem ntau alkalis

Industrial Atmospheres- Zoo heev huab cua tsis kam

Marine Atmospheres- Tsis muaj corrosion nyob rau hauv ntug dej hiav txwv ib puag ncig





1. Dab tsi yog titanium tubing siv rau?

Titanium tubing feem ntau yog siv nyob rau hauv ntau yam kev lag luam rau nws lub zog tshwj xeeb - rau - hnyav piv, corrosion kuj, thiab biocompatibility. Cov ntawv thov feem ntau suav nrog aerospace, kev cog lus kho mob, kev ua tshuaj lom neeg, thiab kev tsim vaj tsev hauv hiav txwv.



2. Dab tsi yog qhov zoo ntawm kev siv titanium tubing?

Titanium tubing muaj lub zog siab, tsis tshua muaj siab, zoo heev corrosion kuj, thiab zoo tshav kub hloov zog. Nws kuj yog biocompatible, ua rau nws haum rau kev siv kho mob. Tsis tas li ntawd, nws muaj qhov siab melting point thiab tiv taus qhov kub thiab txias.



3. titanium tubing piv rau lwm cov ntaub ntawv li cas?

Piv rau cov ntaub ntawv xws li stainless hlau lossis txhuas, titanium tubing yog sib dua thiab corrosion ntau dua -resistant. Nws muaj lub zog ntau dua - rau - qhov hnyav piv dua li cov hlau feem ntau, ua rau nws zoo tagnrho rau cov ntawv thov uas txo qhov hnyav thiab ua haujlwm ntev yog qhov tseem ceeb.



Peb lub Hoobkas yog lub chaw tsim khoom tshwj xeeb titanium uas muaj cov cuab yeej ua haujlwm siab tshaj plaws suav nrog lub tshuab nqus tsev arc remelting (VAR) rau siab -purity ingot melting, hydraulic forging presses thiab rotary piercing mills rau raj hollow ntau lawm, pilger mills thiab txias kos duab lub rooj ntev zaum rau precision raj txoj kev sib sau, lub tshuab nqus tsev ua tiav, kev kho cua sov ua kom tiav, thiab kev kho cua sov ua kom tiav. straightening, thiab nto ua. Peb nyob rau hauv -lub tsev soj ntsuam zoo nta kho qhov muag emission spectrometers (OES) rau tshuaj tsom xam, universal testing machines (UTM) rau txhua yam khoom, ultrasonic flaw detectors thiab eddy tam sim no testers rau tsis yog -destructive soj ntsuam, metallographic microscopes rau kev ntsuam xyuas microstructure, thiab hydrostatic testers rau txhua qhov kev ntsuam xyuas siab nruj thoob ntiaj teb cov qauv ua ntej ua zaub mov xa tuaj.
